NX500

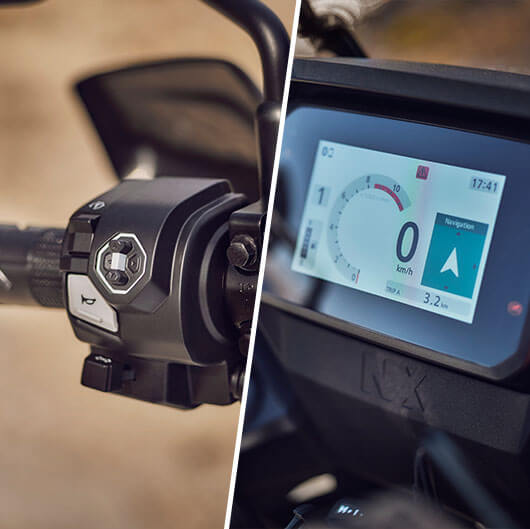

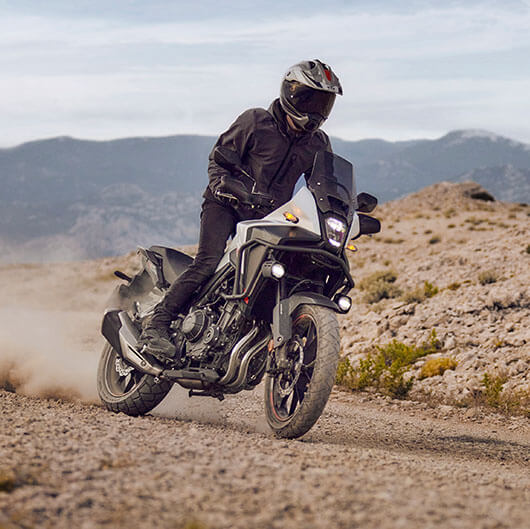

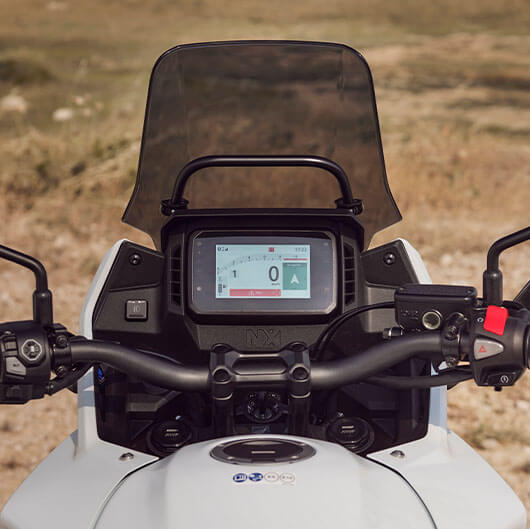

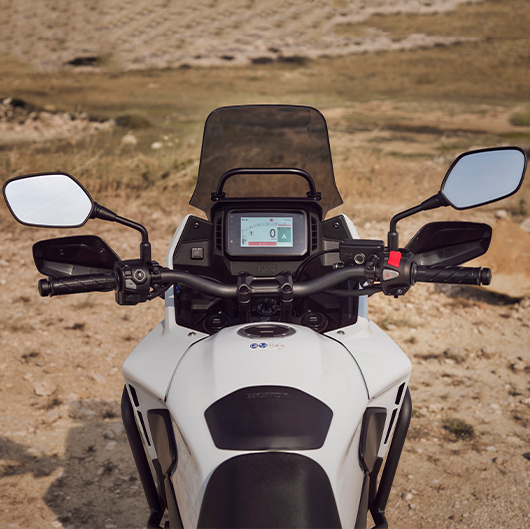

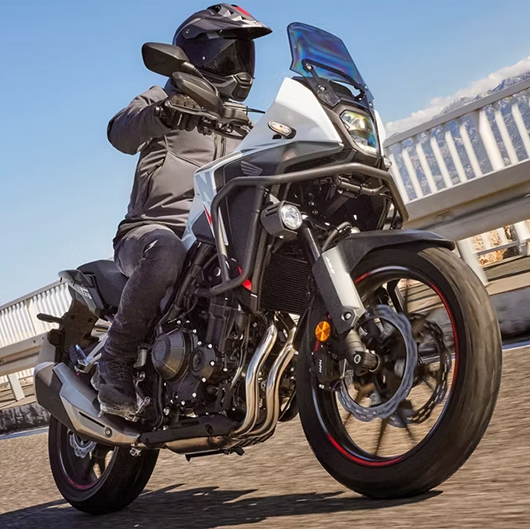

Go where you choose with the all-new Honda NX500, a perfect choice for modern street adventures. Crafted to be the ultimate companion for those seeking thrilling rides from city streets to weekend escapades, the NX500 redefines versatility. Its modern off-road inspired design, featuring an assertive rally-style fairing and a large sized screen, offers both comfort and wind protection. This cutting-edge ride is equipped with advanced technology, including a 5-inch TFT screen with Honda RoadSync smartphone connectivity. Powered by an A2-compliant twin-cylinder engine, the NX500 ensures flexible and immensely enjoyable perfomance with HSTC traction management. Your new experience awaits – where will you take your next ride?

ULTIMATE POWER

A2-Compliant Twin-Cylinder Engine Strong torque seamlessly from low to mid rev-range, with 43Nm impressive peak , ensuring a thrilling and responsive acceleration experience both on and off the road.

Features

Specifications

ENGINE

TypeLiquid-cooled 4-stroke DOHC parallel twin
Displacement471cc
Max Power35kW @ 8600 rpm
Max Torque43N-m @ 6500 rpm
Fuel SystemPGM-FI
Bore x Stroke67mm x 66.8mm
Compression ratio10.7:1

ELECTRICALS

Battery rating (Ah) 12V, 7.4 Ah

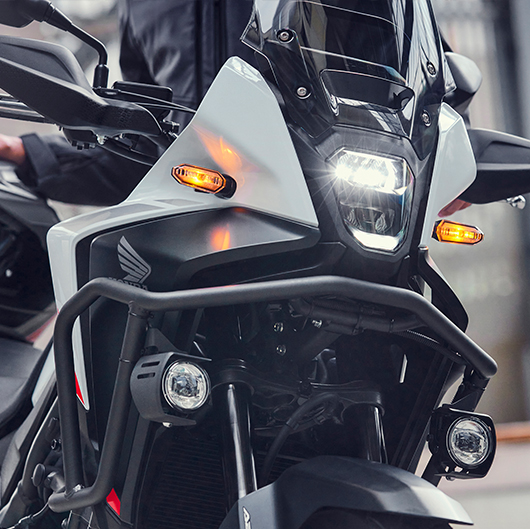

Head lamp/ tail lamp LED

BODY DIMENSIONS

Length 2165 mm
Width 829 mm
Height 1413 mm
Wheel Base 1447 mm
Ground Clearance 181 mm
Kerb Weight 196 kg
Fuel Tank Capacity 17.5 L

Frame

Frame type Diamond Steel

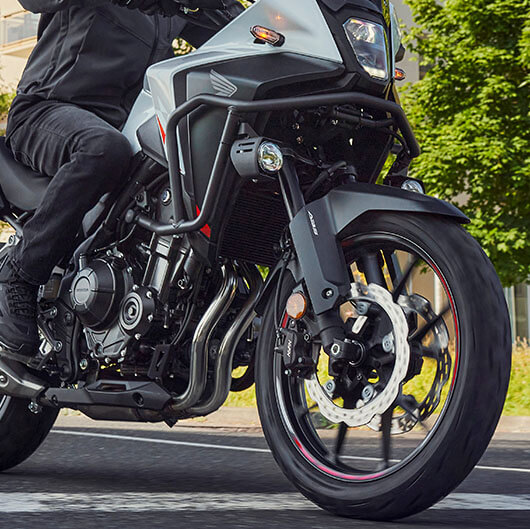

Front Suspension Showa 41mm USD Forks
Rear Suspension Prolink Monoshock

TYRES

Tyre Size & Type (Front) 110/80R 19M/C (59H)
Tyre Size & Type (Rear) 160/60R 17M/C (69H)

BRAKES

Break Type & Size (Front) Dual Disc 296mm
Break Type & Size (Rear) Single Disc 240mm
Brakes Dual Channel ABS with ESS

TRANSMISSION

Starting method Self
Clutch Type Wet multiplate
No. of Gears 6

TRANSMISSION

Starting method Self
Clutch Type Wet multiplate
No. of Gears 6

Colors

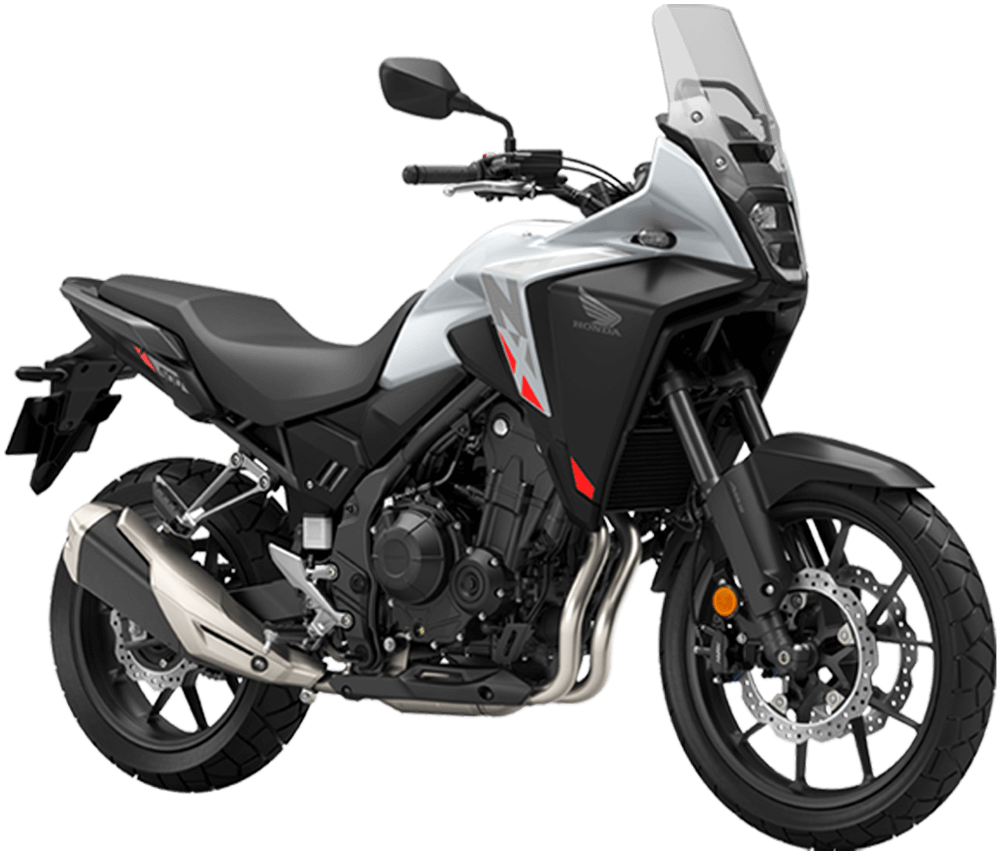

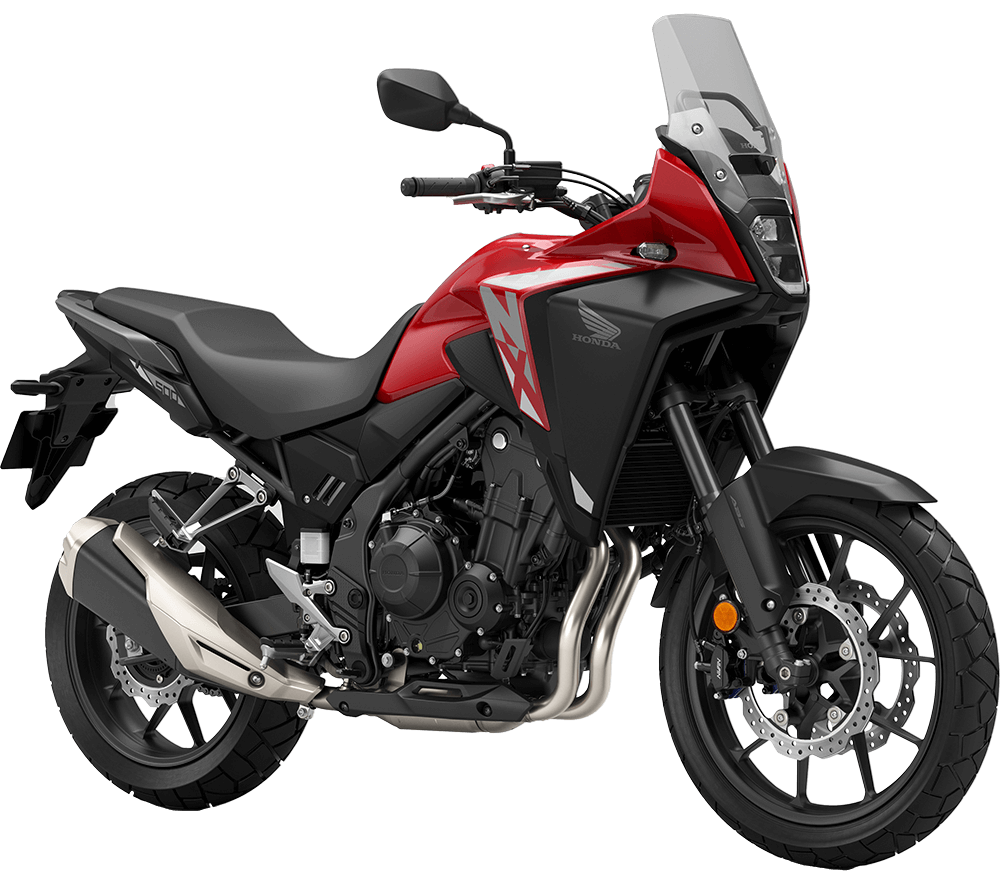

GRAND PRIX RED PEARL HORIZON WHITE MAT GUNPOWDER BLACK METALLIC

Accessories

Wind Screen Smoke

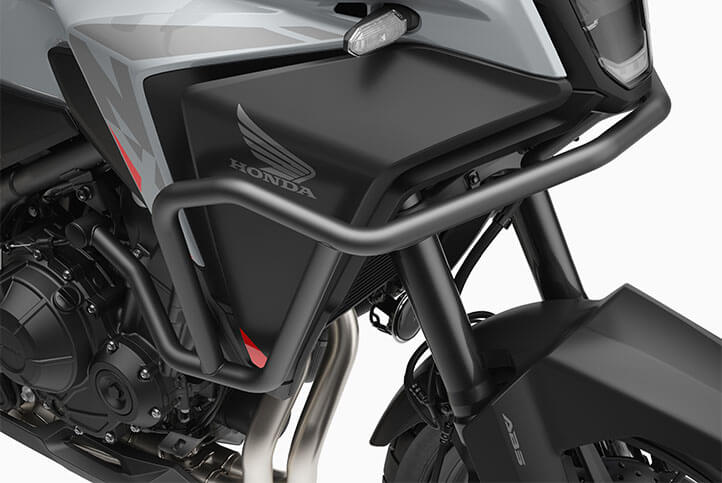

Front Side Pipe

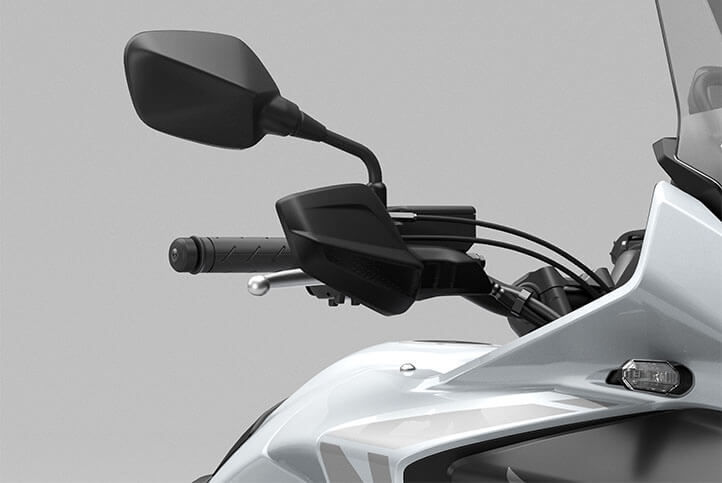

Knuckle Guard

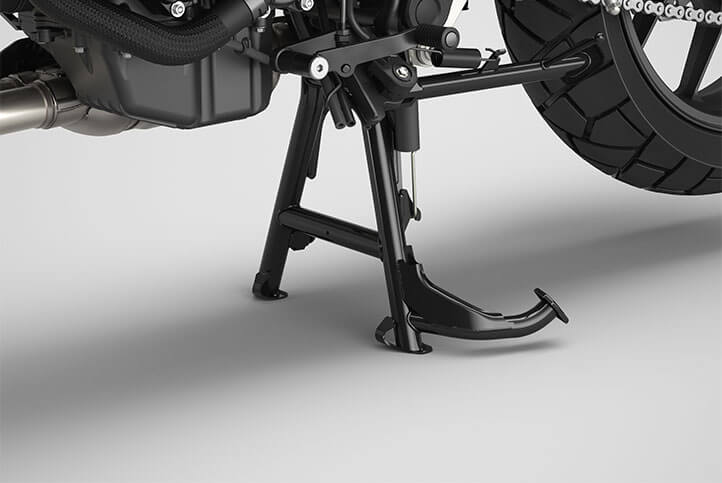

Main Stand

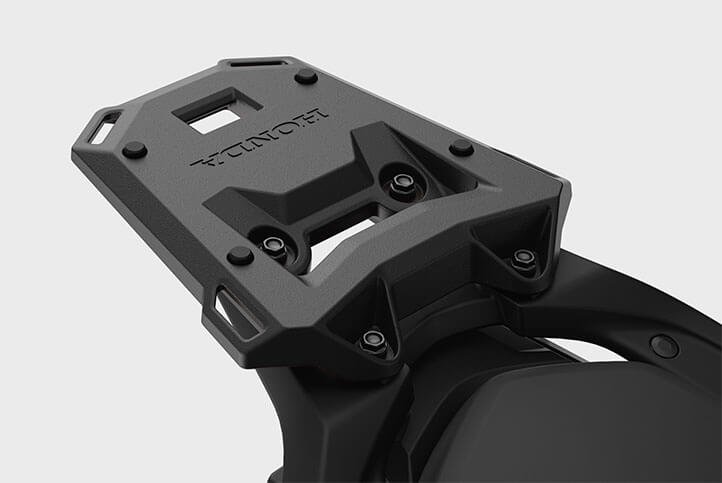

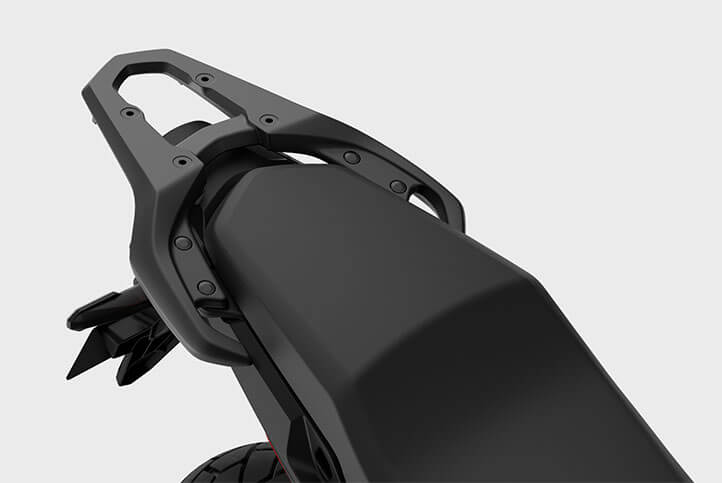

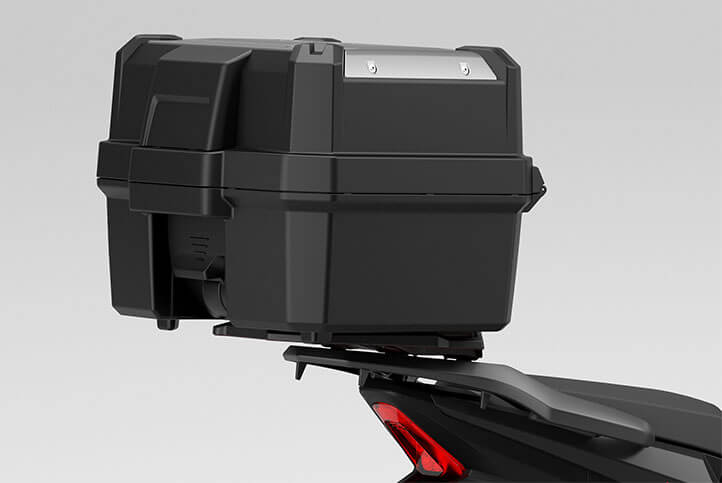

Rear Carrier

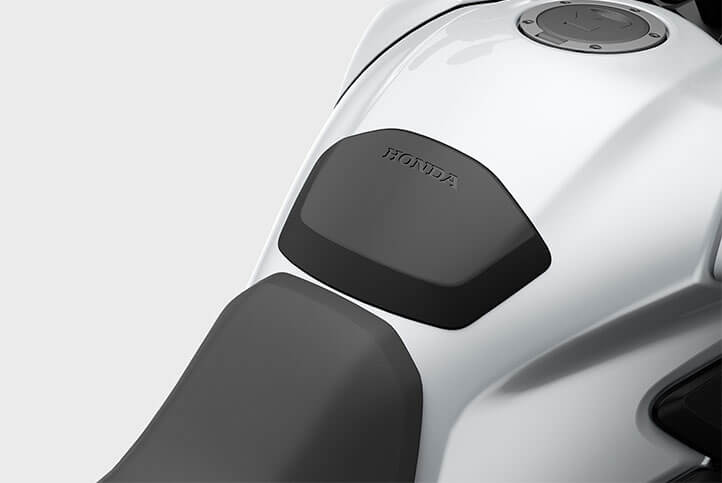

Tank Pad

Tank Pad

Tank Pad

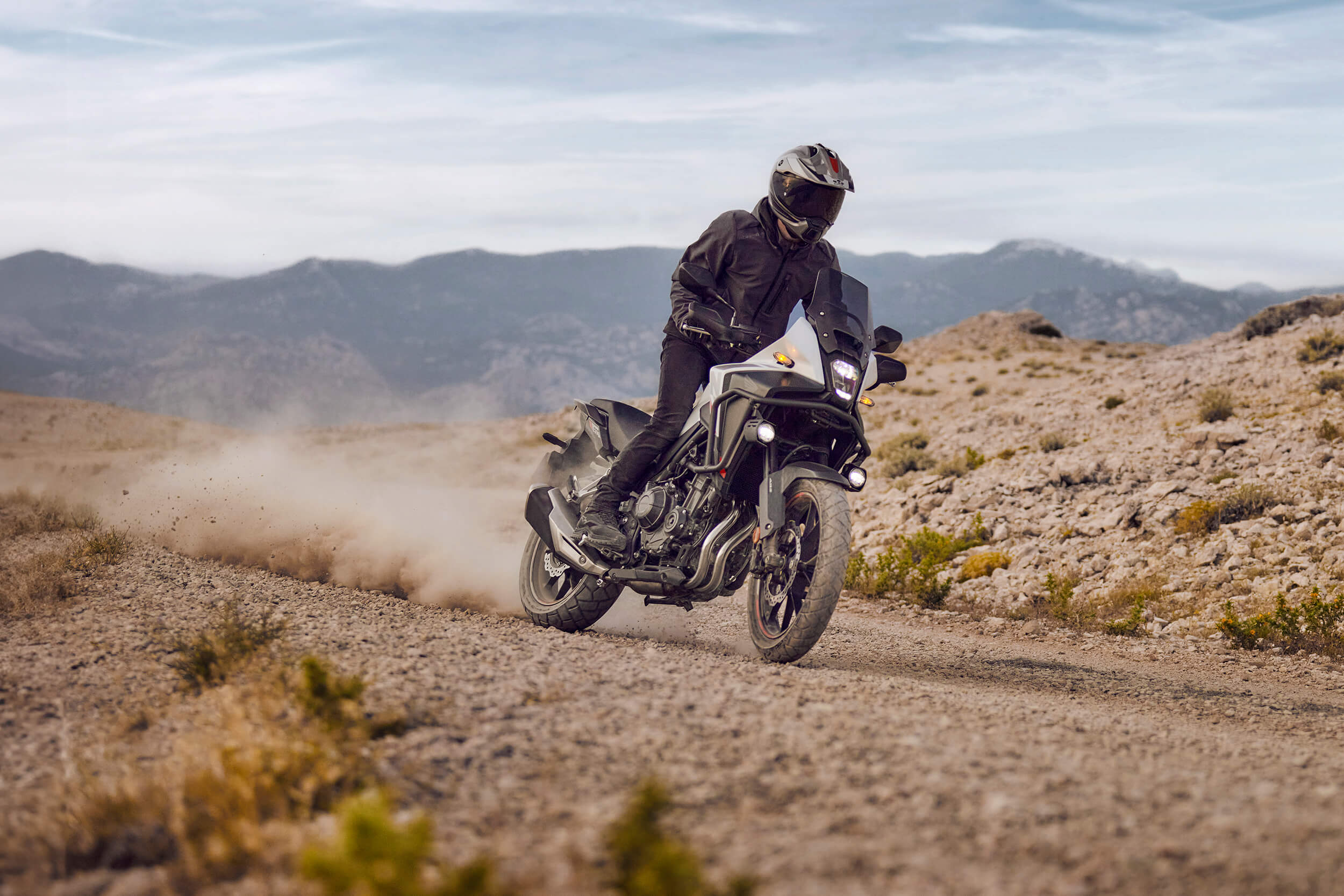

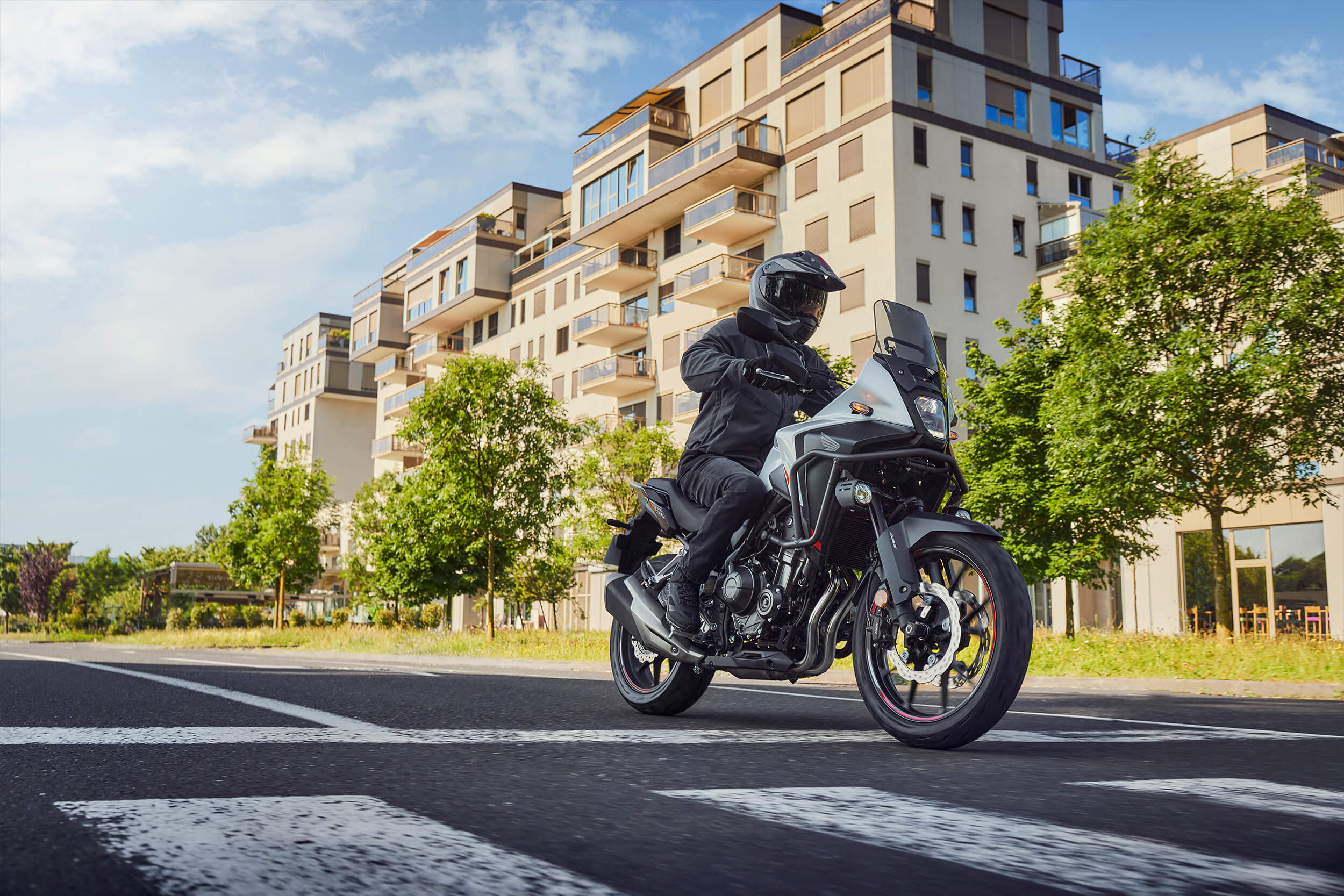

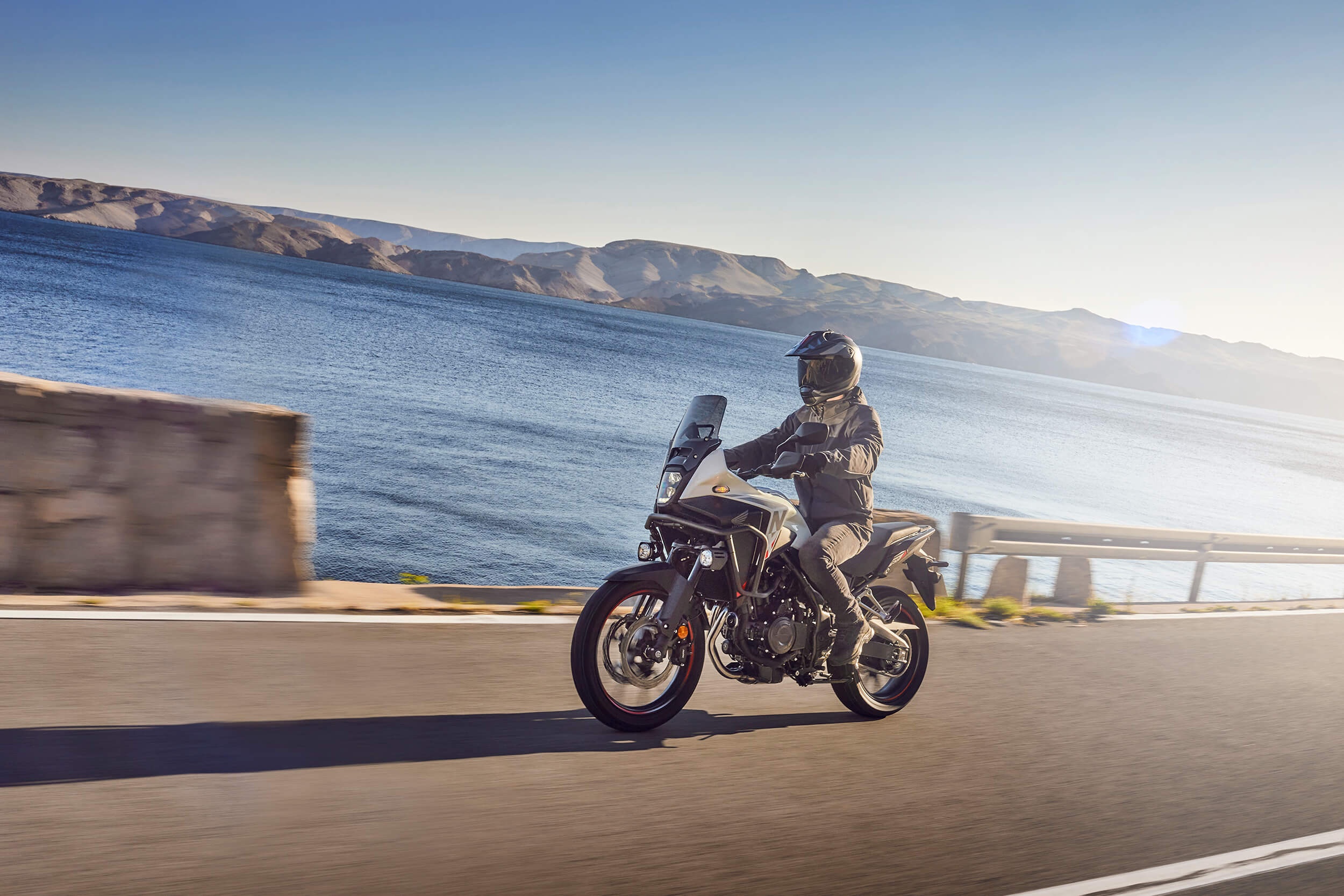

Gallery
